Horsepower & Torque: 510 Horsepower / 440 ft. lbs. Torque
Cylinder Heads: BluePrint Engines LS3 Aluminum Cylinder Heads
Compression Ratio: 10.7:1
Camshaft: Hydraulic Roller Cam - .612 Intake / .585 Exhaust Lift and 225 Intake / 238 Exhaust Duration @ .050 - 113° LSA - Three Bolt Cam
Pistons: Hypereutectic
Crankshaft: Nodular Iron Crank - 3.622" Stroke and 6.125" Rods
Multi-Port Fuel Injection: BluePrint Engines Complete Engine Harness and ECU Kit
Fuel Recommendation: 91+ Octane
- Description
- Engine Specs
- Parts & Accessories
- Warranty
Overview:

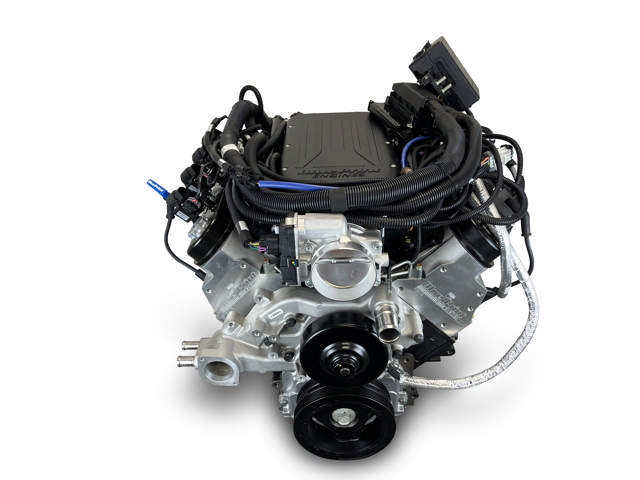

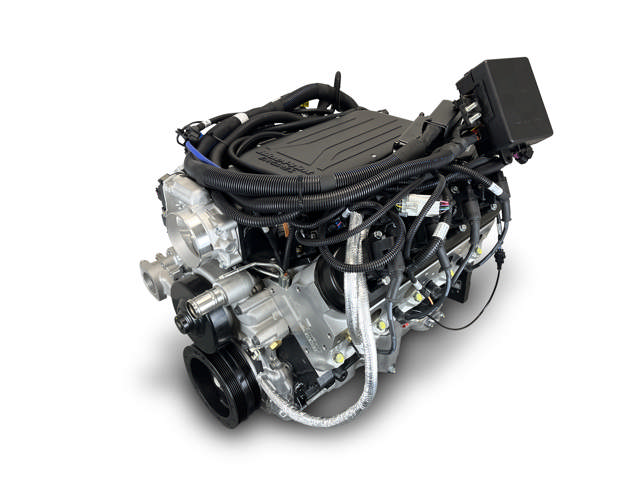

The BluePrint ever popular GM LS-Compatible 376 c.i. performance crate engine delivers a dyno-tested 510 horsepower and 440 ft. lbs. of torque, right out of the box. This engine comes equipped with BluePrint’s fully calibrated multi-port fuel injection system—engineered for precision and reliability. The included ECU and complete wiring harness make installation straightforward and stress-free and has been rigorously tested over the course of a year in both on-road and off-road environments, under a wide range of temperatures and conditions. The result? A finely tuned, fully optimized calibration that maximizes the power and drivability of this 376 c.i. powerhouse—far surpassing the performance of typical self-learn EFI systems. The BluePrint ECU manages both ignition timing and fuel delivery and supports seamless self-learn functionality as you add bolt-on upgrades like headers, camshafts, or performance exhaust systems. With just three simple connections—Main Battery, switched 12V Ignition, and Fuel Pump—you’ll be up and running in no time.
Description:
- Horsepower & Torque: 510 Horsepower / 440 FT LBS. Torque
- Compression Ratio: 10.7:1
- BluePrint Engines LS3 Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Hypereutectic Pistons
- Nodular Iron Crankshaft
Block:
- BluePrint Engines High Strength Cast Iron (LSX Style) Block
- Increased Deck Thickness and Strength Webbing
- Utilizes OEM LS3 Front and Rear Covers
- Improved Water Jacket Design
- Extended Cylinder Skirt
- 1-Piece Rear Main Seal
- Priority Main Oiling
- 4.0662" Bore
- 6-Bolt Main
Rotating Assembly:
- Nodular Iron Crankshaft
- 3.622" Stroke
- 6.098" Connecting Rods w/ 150,000 PSI Bolts
- Hypereutectic Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint LS3 Aluminum Cylinder Heads - PS8015
- 69cc Chamber
- 2.165" Intake / 1.590" Exhaust Valves
- 259cc Intake / 102cc Exhaust Runners
Cam Specs:
- Hydraulic Roller Cam
- .612 Intake / .585 Exhaust Lift
- 225 Intake / 238 Exhaust duration
- @.050-113 Degree Lobe Separation
Ignition Timing:
- Ignition Timing and Spark Advance are Controlled by BluePrint Engine Calibrated ECU
- Transmission Controller Required if pairing to an automatic (ECU Does Not Offer Transmission Control)
Also Includes:
-
Drive by Wire Throttle Body - BPP12191019
- LS3 Cast Aluminum Intake Manifold
- LS Swap Oil Pan - BPP81073
- Water Pump - BPPLS126WP
- Engine Harness and ECU Kit
- Injectors and Fuel Rail Kit
- Spark Plugs & Wiring
- Harmonic Balancer
- Timing Cover
- Valve Covers
- Coil Packs
- Gas Pedal
Notes:
- This engine requires a non-weighted flex plate such as (BPP12654640) / flywheel (BPPLS1611).
- Recommended fuel: 91 Octane.
- BluePrint Engines recommends a 2200+ RPM stall converter.
- Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars.
- Not for use in pollution-controlled vehicles or in dry sump applications.
- The Included BluePrint Engines LS controller package contains a fully tested, calibrated, locked ECU, optimized for this specific engine. This package has undergone extensive testing for performance, reliability and the safety of you and your engine.
Cylinder Heads
LS3 Aluminum Cylinder HeadsIgnition Timing
ECM Supplied with CalibrationSpark Plug
.040 in.Firing Order
1,8,7,2,6,5,4,3Rotating Assembly
Nodular Iron Crank - 3.622 in. Stroke and Forged 6.125 in. RodsCam Specs
Hydraulic Roller - .612 Intake / .585 Exhaust Lift - 225 Intake / 238 Exhaust Duration - @.050-113 LSAStall Converter
2200+ RPMYour BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold | BluePrint Engines Cast Aluminum Intake |
|---|---|
| Spark Plug | Champion 3015 / RS14PMC4 |
| Harmonic Balancer | Non-Weighted |
| Flexplate/Flywheel (Not Included) | Non Weighted BPP12654640 - BPPLS1611 |
| Fuel Recommendation | 91 Octane |
Header Partners:
- Click Here for our Header Partners and recommendations.
Better Than the Rest.
The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.
We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable. View detailed overview
Already Own this engine?
Protect your investment by registering your warranty today. Register below to ensure coverage and stay up to date on important service information.
Register NowEVERY BLUEPRINT ENGINE ACES THE DYNO TEST
We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer in our in-house dyno testing rooms to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That’s precisely why our engines sound and run better than our competitors.
All specs, zero speculation: A comprehensive, dyno-generated printout showing your critical engine specs will accompany your delivered engine — every time. No more guessing or wondering what your installed engine’s real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash ‘em your exact engine’s dyno results.
